Français Oxygenation
A sufficient oxygen supply is a basic prerequisite for optimal performance of your stock. Growth, feed conversion and security of your production are directly related to oxygenation.
Depending on the type of the farm different oxygenation systems are the optimal solution. We calculate and offer you the optimal solution for your farm
Oxygenation systems from WATER – proved can of course be integrated into existing structures
Additionally to the oxygenation system itself we offer according pumps, monitoring and oxygen dosing systems
If desired, the automation of the oxygen input can be carried out by our plant control system.
Systems in Overview:

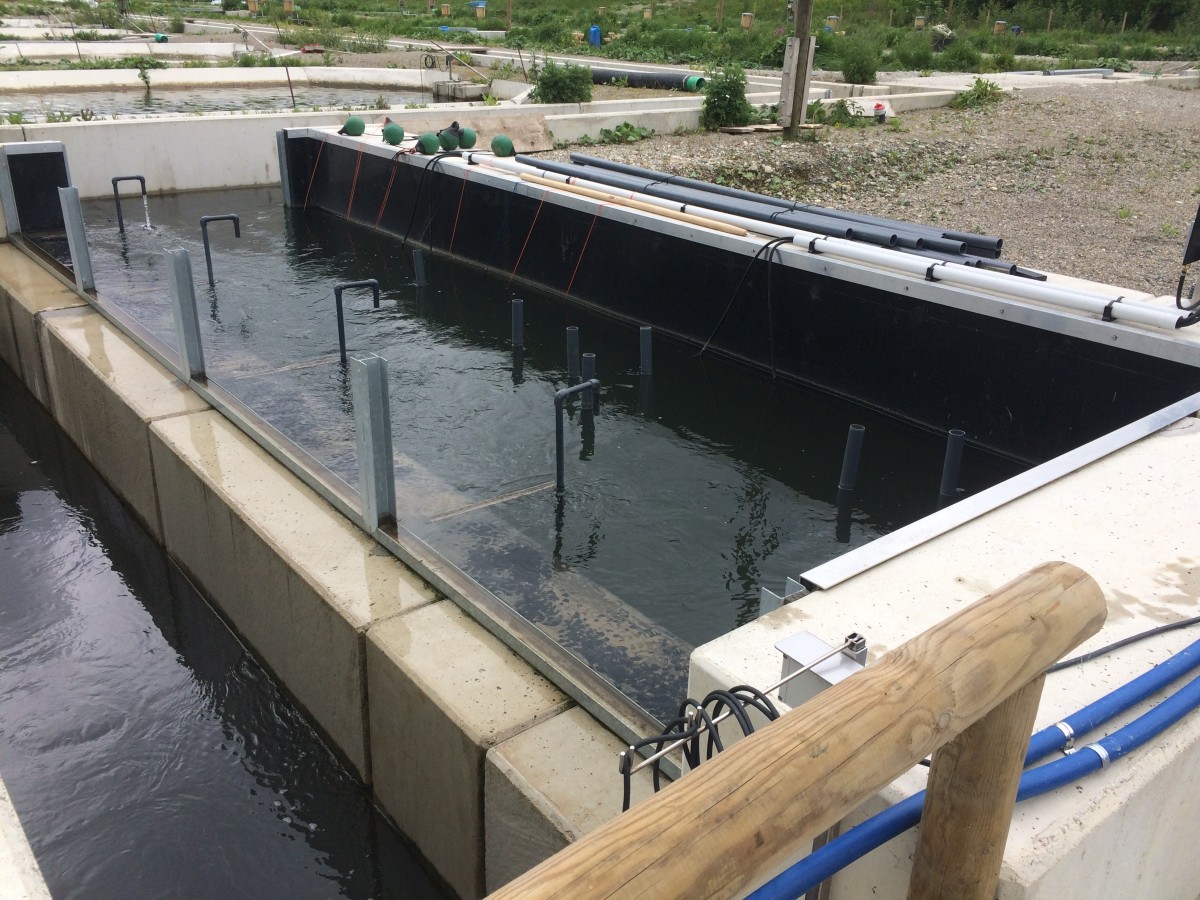

In a LHO water flow through a jet system into a reaction chamber. The system works with a low pressure of 50 to 100 mbar. It is widely used for individual tank oxygenation or global oxygenation in the farm. Pressure of the incoming water or the circulations pumps is used to create the pressure in the LHO.
Our LHOs are individually designed. They can be installed at the side of a tank or directly in a raceway.
Water flow per unit: 4 l/s .... 500 l/s
Contact us
Oxygen cones can be used as centralized or individual oxygenation systems. They are operated under pressure of 1 ... 2 bar. Oxygen and water are mixed inside the cone to create high supersaturation of oxygen in the water.
Flow per unit: 15 m3/h .... 140 m3/h
Contact us
U-tube systems use the natural pressure of a water column for oxygenation. They are installed into the ground, up to 20 m deep.
U-tube systems are designed individually.
Ask for a quotation.
Contact us
?????
U-tube systems is a central injection method in which the water to be enriched flows through a shaft. The depth of the shaft should allow a water level of at least 10 metres. The resulting natural water pressure enables oxygen supersaturation.
We plan deep shaft systems individually for your plant.
Besides oxygenation itself we of course also provide dosing equipment including flow meters, valves, solenoid valves, flow controllers, etc. All equipment is custom mounted on racks to provide a plug and play solution for the customer.
We also offer emergency oxygen systems including diffusor hose, valves, etc.
More information and prices about dosing equipment
