Standard RAS Water Treatment Container

© WATER – proved GmbH

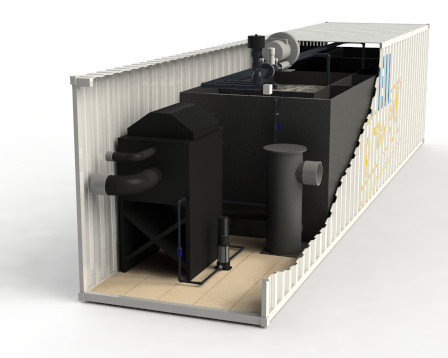

RAS-Container – made by Water - proved

Our RAS containers can be used for a wide range of fish species and farms in the most diverse installations.

The product selection of the basins is various.

With a small amount of work on site and a speedy installation
we can increase your production quickly and at an attractive price by using RAS technology.

Specifications:
  • Daily feeding: 176 kg (34% RP at 28°C)
  • Waterflow: 190 m3/h
  • Exchange water: Up to 2,5 m3/h
  • Connected power: 11,57 kW
  • Energy consumption: 10,47 kW
  • Connections: 315 mm inlet and outlet + 110 mm backwash pump and water exchange
  • Dimension LxWxH: 2,5 m x 12,5 m x 3,2 m

The Standard RAS Container includes:

  • 1 drum filter and backwash pump
  • 1 pump for the waterflow towards the biofilters
  • 3 Biofilters filled with Biomedia
  • 1 blower for the aeration of the biofilters
  • 1 recirculation pump towards the fish tank
  • 1 extractor fan
  • The internal pipes setup
  • 1 Electrical cabinet + the electrical installation
  • Biofilter Start-up products

Download Datasheet
